Securnix

SKU: GP100 Brand: Securnix

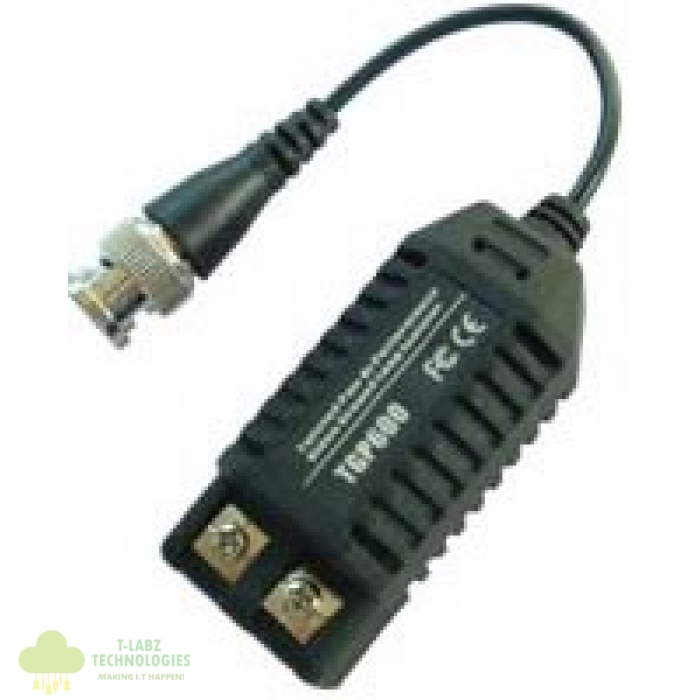

Securnix Video Ground Loop Isolator

Name: Securnix Video Ground Loop Isolator
Brand: Securnix
SKU: GP100
Availability: InStock

Securnix Video Ground Loop Isolator, BNC male to terminal block with 15cm mini coax cable., ,

R458.56 incl VAT

In stock

💡 Save More! Get 4% off when you pay via EFT — discount applied at checkout.

In stock

Add to compare

Add to wishlist

8 People watching this product now!

Pay Securely With Trusted Providers:

Manufacturer Warranty Included - Enjoy peace of mind with genuine product warranties, we’ve got you covered.

Trusted by South Africans - Thousands of happy customers nationwide.

Securnix Video Ground Loop Isolator, BNC male to terminal block with 15cm mini coax cable

Twisted Pair Video Ground Loop Isolator GP100

Product Overview
The Securnix Twisted Pair Video Ground Loop Isolator GP100 are passive devices which reduce Ground Loop Interference with CCTV signals and can easily install in a new or added to existing systems. It is useful where a video signal is transmitted via cable between points with different ground potentials. Differences in ground potentials are typically caused by unbalanced power line loads.

Features:
• BNC male to terminal block with 15cm mini coax cable
• Passive type, no power need
• Hi Performance to eliminate ground loop problem
• Low video loss, Bandwidth: 20hz -11Mhz ,+0/-3Db
• Prevents video-signal distortion caused by video ground loops
• Eliminates picture tearing, cross talk and rolling
• Prevents power cables laid by others interfering with the CCTV system

Specifications:
• Insertion Loss:0.5dB
• Frequency Response:20HZ- 10Mhz,+0/-3dB
• Input Resistance:75 ohm
• Output Resistance:100 ohm
• Isolation Voltage:600VDC (Min)
• Insulation Resistance:100M Ohm
• Transient Voltage Suppressor:12 Vrms
• Material ABS Black
• Dimensions (mm)-72x28x22
• Weight: 156g/pair

Installation View

The Video Ground Loop Isolator should be installed where runs of video cable are known to have ground loops. It must be installed in the video cable that has come directly from the camera, but before the cable has been connected to anything else.

If several video cameras come from the same area, fix a Video Ground Loop Isolator In every cable, or a ground loop will still remain

Weight	0.1 g
Dimensions	11.5 × 11 × 4 cm
Brand	Securnix
