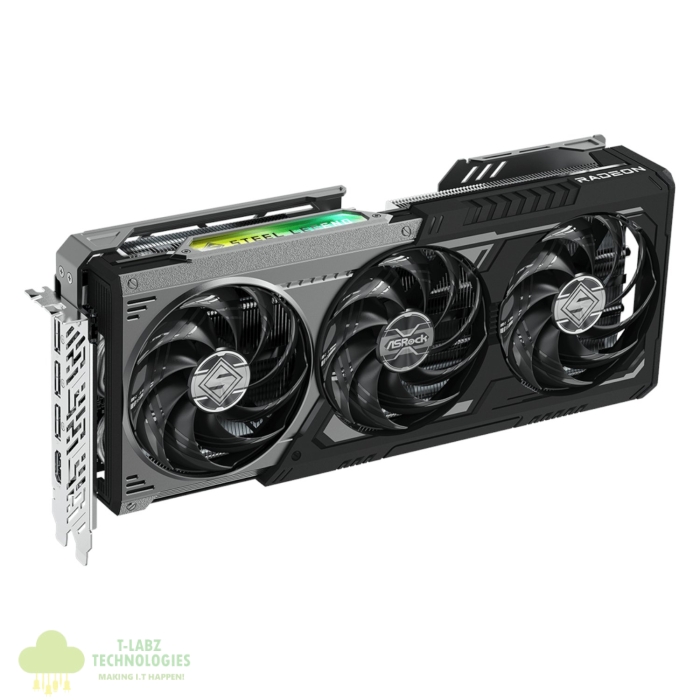

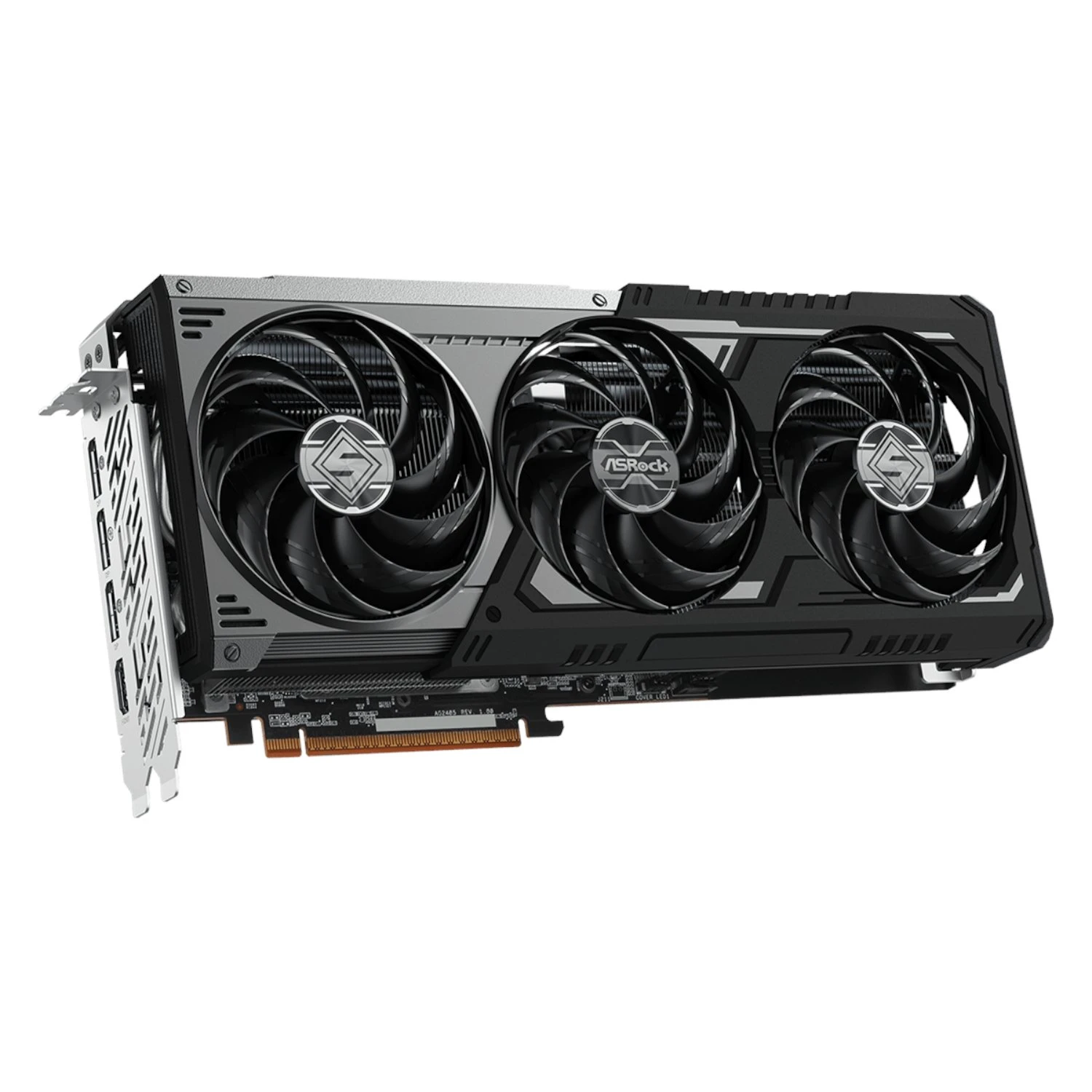

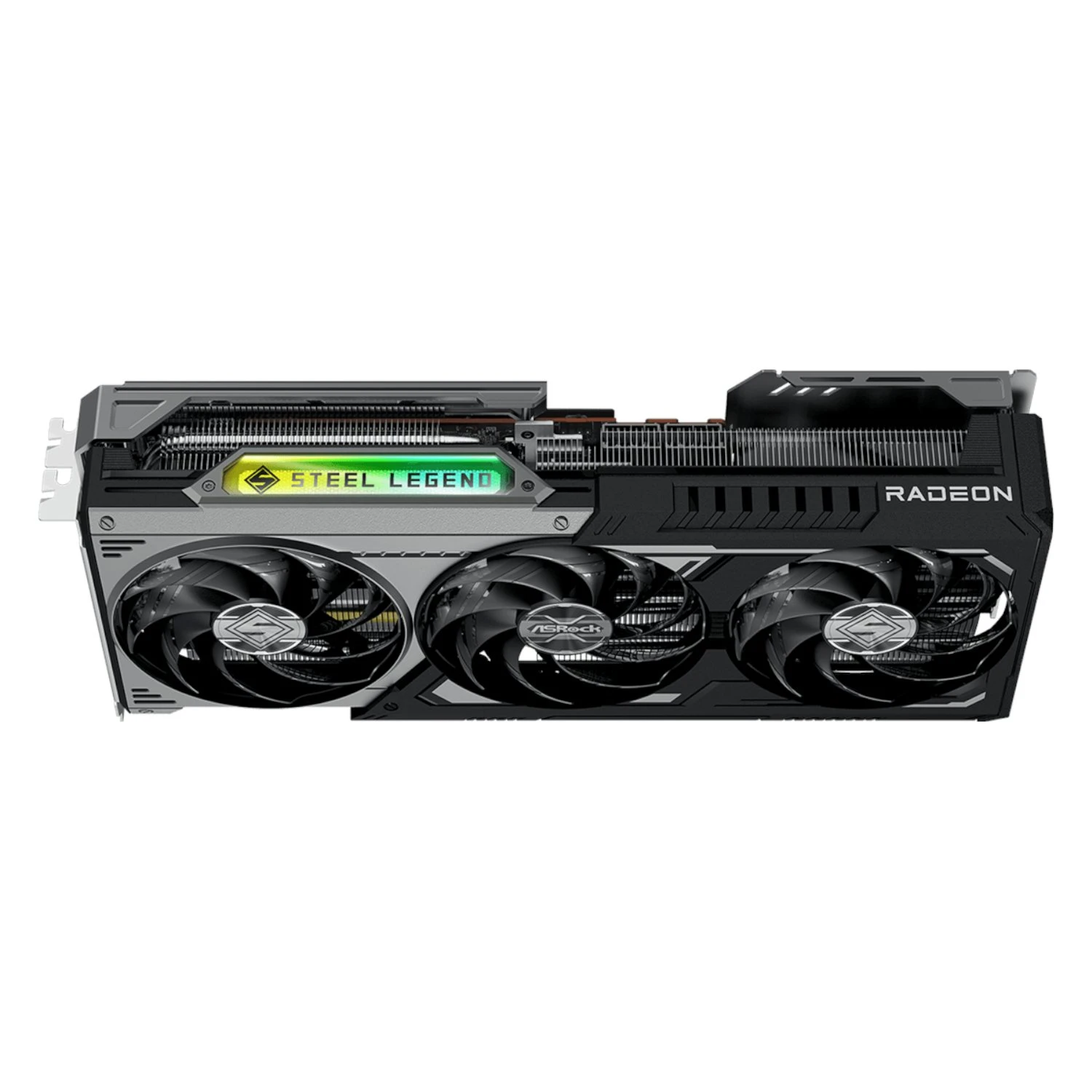

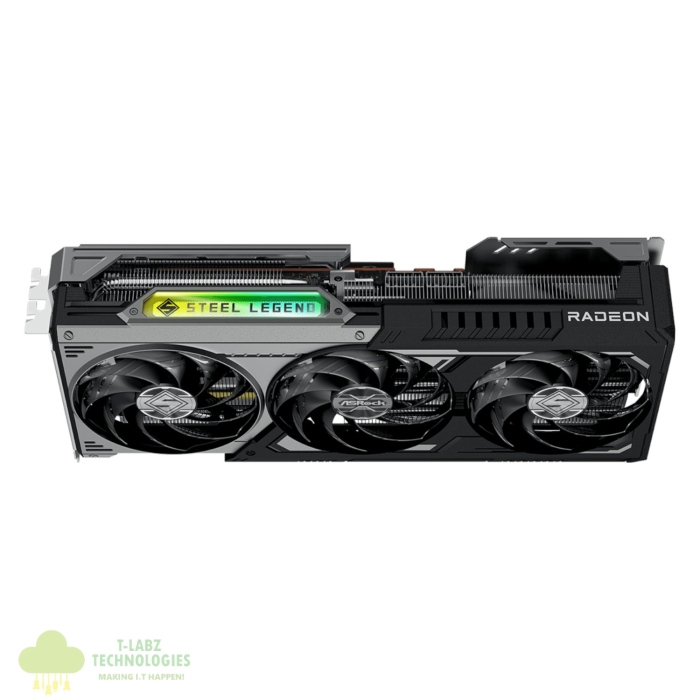

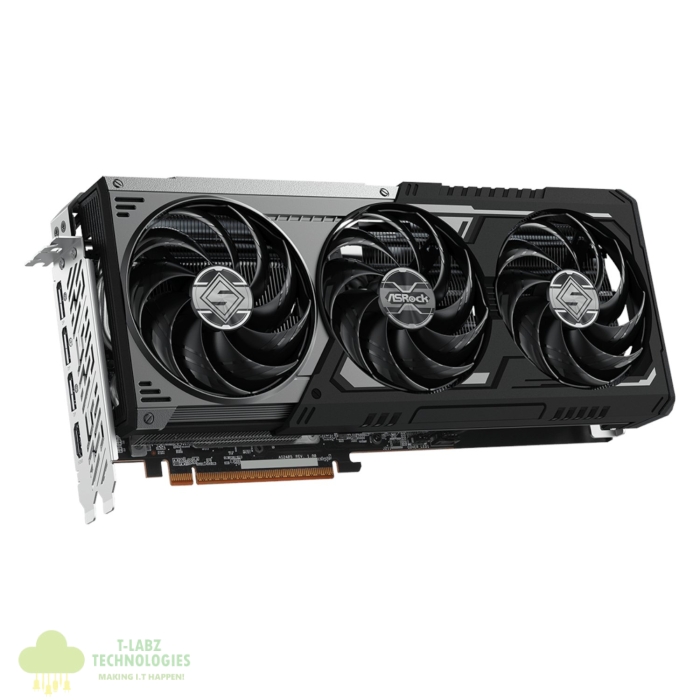

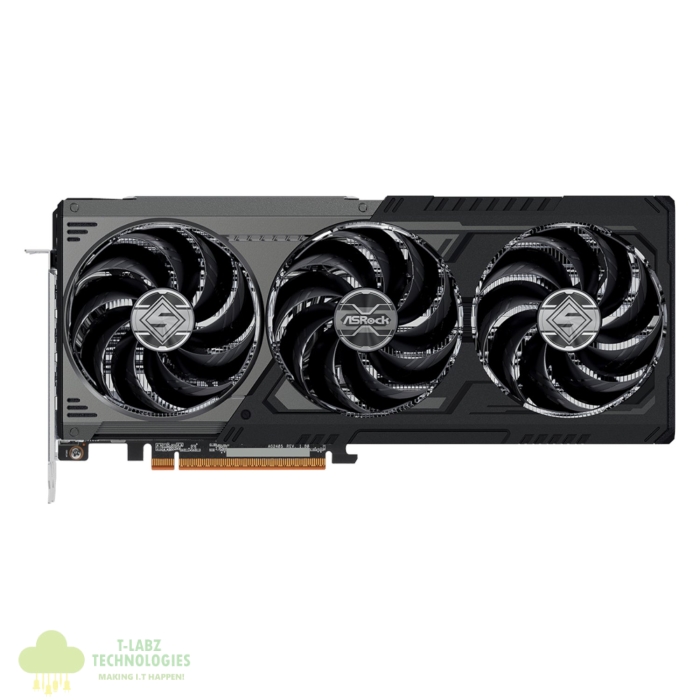

ASRock Radeon RX9070 XT Steel Legend Dark 16GB Graphics Card

Built to command the battlefield and elevate your rig’s visual edge, the ASRock Radeon™ RX 9070 XT Steel Legend Dark 16GB Graphics Card fuses elite AMD RDNA™ 4 architecture with high-end cooling innovation and aesthetic mastery. Designed for gamers and content creators craving top-tier performance, this GPU delivers ultra-immersive gameplay, next-gen raytracing, and advanced thermal engineering—all with Steel Legend durability and visual flair.

At its core, the RX 9070 XT houses 4096 stream processors, 64 compute units, and 16GB of ultra-fast GDDR6 VRAM across a 256-bit interface, achieving a boost clock of up to 2970MHz. Whether you’re pushing ultra settings in 4K or diving into competitive eSports titles, the performance ceiling is sky-high. AMD FidelityFX™ Super Resolution 4, HYPR-RX, and Smart Access Memory™ support work in tandem to sharpen visuals, lower latency, and boost FPS in thousands of titles with one-click ease.

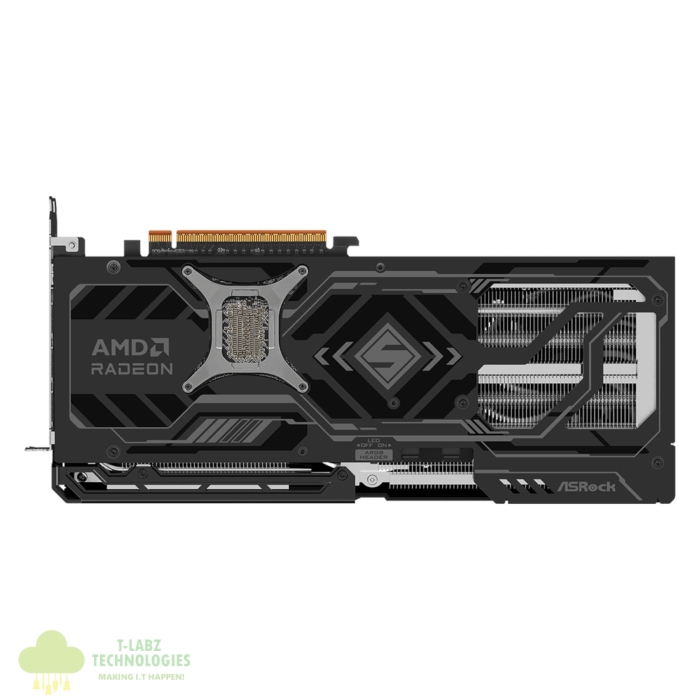

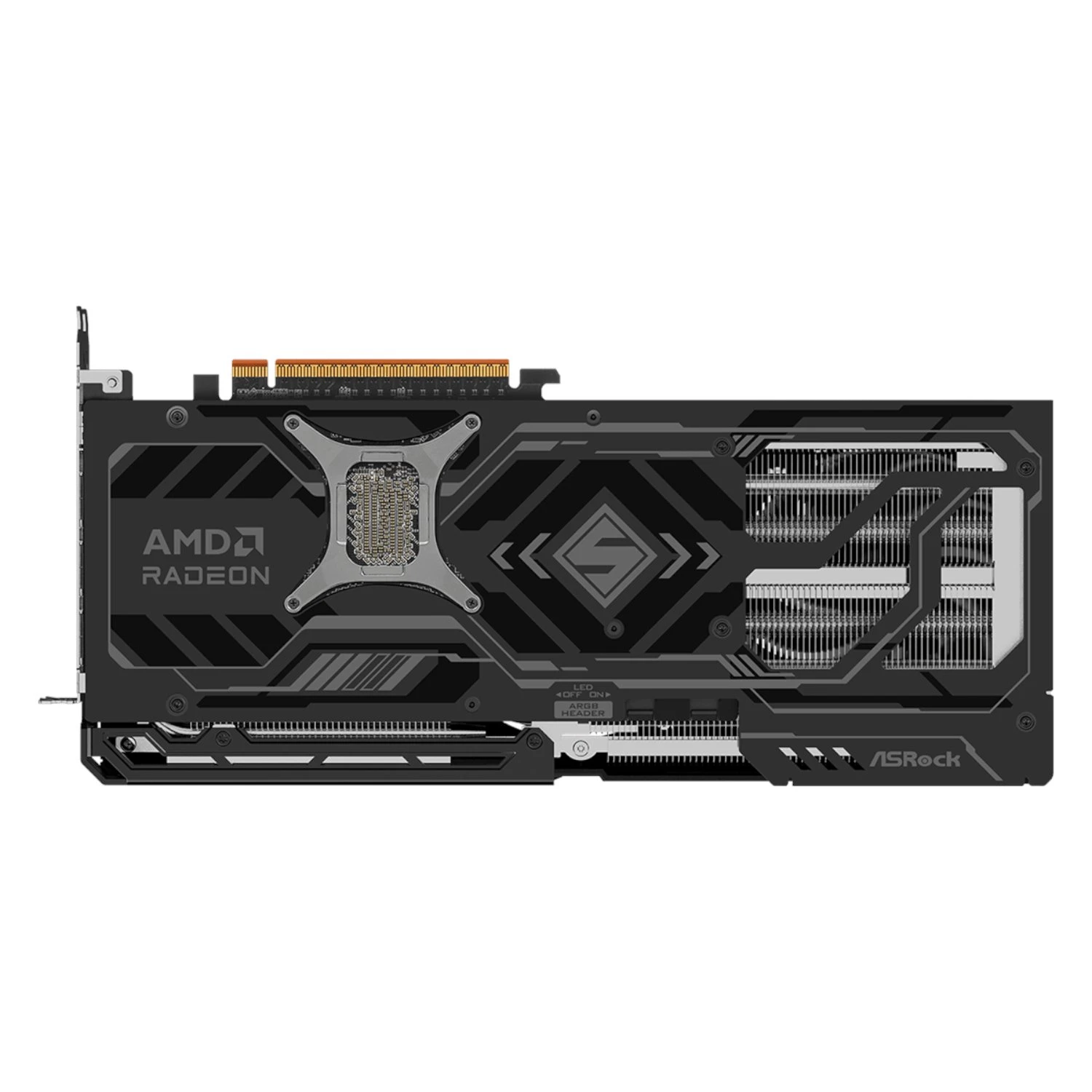

The triple-fan cooling system incorporates Striped Ring Fans, ultra-fit heatpipes, premium copper baseplate, and Honeywell PTM7950 phase-change thermal pads, all carefully engineered to maximize heat dissipation and prolong GPU life. Smart fan control ensures silent operation during light workloads and rapid cooling when you’re at full throttle. Enhanced V-shaped fins and airflow vents direct air more efficiently, while the metal backplate with ARGB lighting offers both structural integrity and customizable style, synchronizable with ASRock Polychrome SYNC.

With PCIe 5.0 x16 bandwidth support, blazing data throughput is guaranteed. Connect up to four high-resolution displays via 1x HDMI 2.1b and 3x DisplayPort 2.1a outputs, all supporting up to 8K resolution and variable refresh rate for ultra-fluid visuals. The RGB header allows you to extend lighting effects to other ARGB-compatible devices, creating a unified, personalised aesthetic. Ready for the future of gaming and creation, this GPU is your gateway to jaw-dropping fidelity, relentless speed, and a system that’s as stunning as it is powerful.

FEATURES:

• Powered by AMD RDNA™ 4 architecture with DirectX® 12 Ultimate support
• Game Clock at 2400MHz, Boost Clock up to 2970MHz
• 4096 Stream Processors and 64 Compute Units with 3rd Gen Ray Accelerators
• 16GB GDDR6 memory with 256-bit interface at 20Gbps
• Triple fan cooling with ultra-fit heatpipes
• Metal backplate with RGB lighting and reinforced metal frame
• PCIe 5.0 x16 interface for ultra-fast throughput
• AMD FidelityFX™ Super Resolution 4 and Smart Access Memory™ support

SPECIFICATIONS:

• GPU & Architecture
  • GPU Model: AMD Radeon™ RX 9070 XT
  • Architecture: AMD RDNA™ 4
  • Compute Units: 64 Compute Units (3rd Gen RT + 2nd Gen AI Accelerators)
  • Stream Processors: 4096
  • API Support: Microsoft® DirectX® 12 Ultimate
  • Interface: PCI® Express 5.0 x16
  • Max Digital Resolution: 7680 x 4320 (8K)

• Clock Speeds & Memory
  • Game Clock: 2400MHz / 20Gbps
  • Boost Clock: Up to 2970MHz / 20Gbps
  • Memory Type: 16GB GDDR6
  • Memory Interface: 256-bit
  • Memory Clock: 20Gbps

• Display Output
  • Ports: 1 x HDMI™ 2.1b, 3 x DisplayPort™ 2.1a
  • Multi-View: 4
  • HDCP Support: Yes

• Power Requirements
  • Connector: 2 x 8-pin
  • Recommended PSU: 800W

• Dimensions: 29.8 x 13.1 x 5.8 cm
• Weight: 1155 g

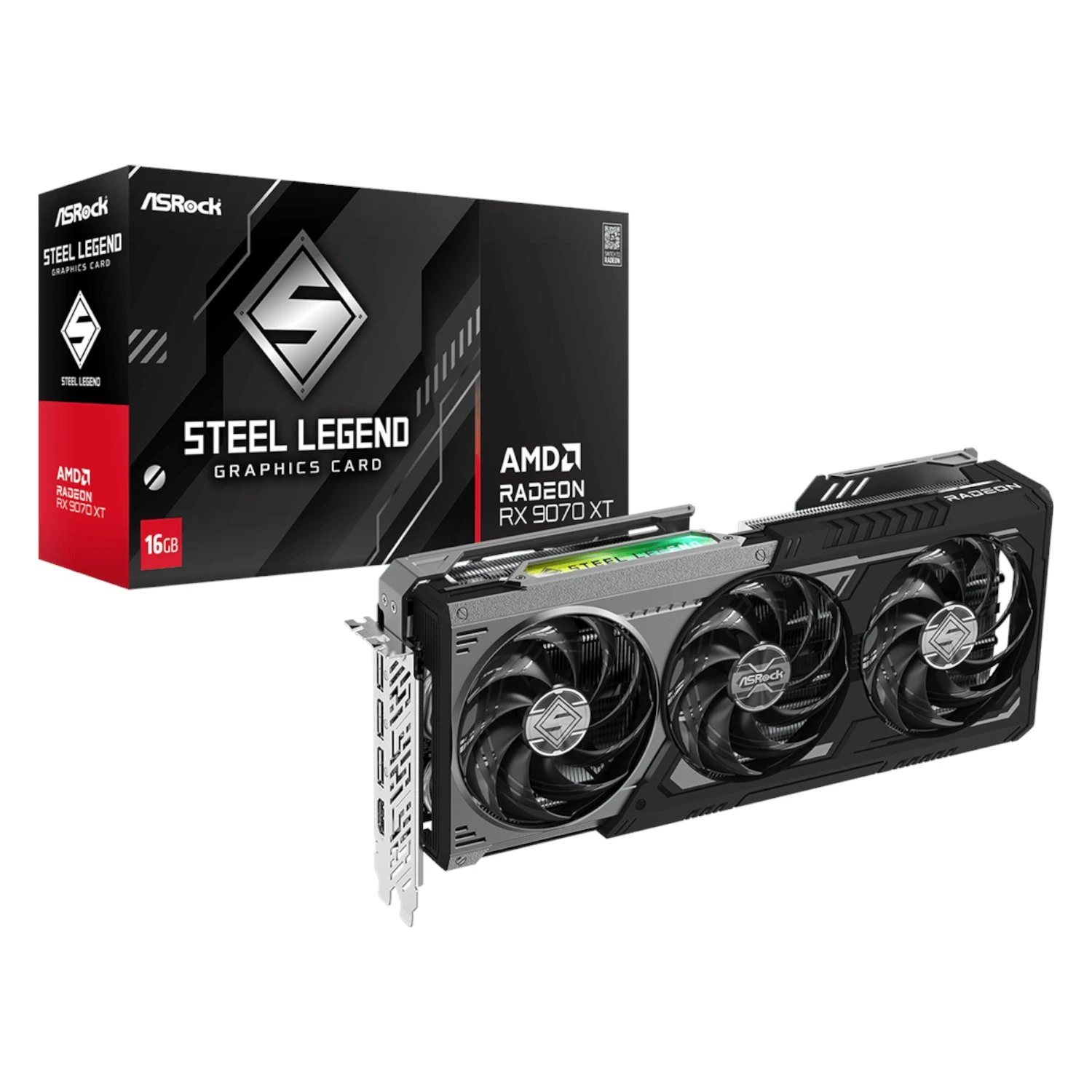

WHAT’S IN THE BOX:

• ASRock Radeon™ RX9070 XT Steel Legend Dark 16GB Graphics Card ×1
• Installation Guide ×1
