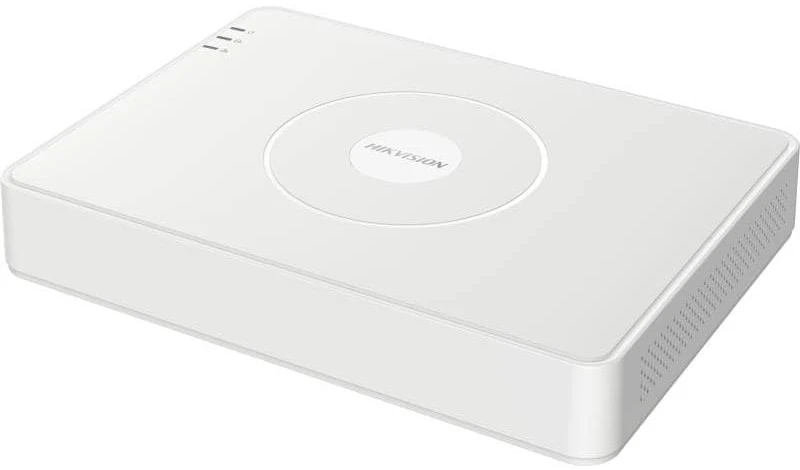

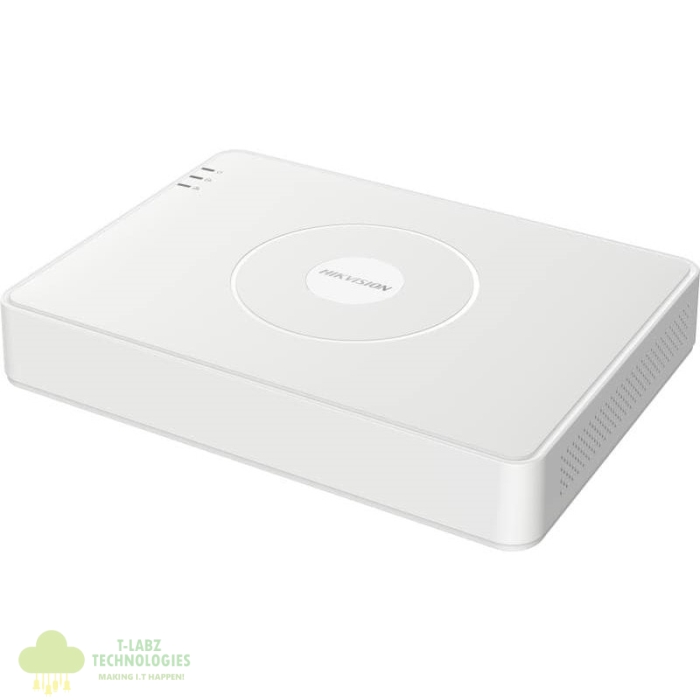

Hikvision 7100 Series 16

Hikvision 7100 Series 16-ch 720p Mini DVR DS-7116HGHI-M1 – 16 channels and 1 HDD 1U AcuSense DVR, Efficient H.265 pro+ compression technology, Encoding ability up to 3K/5M Lite @ 12 fps, 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP), Up to 24 network cameras can be connected.

Product Overview

The DS-7116HGHI-M1 is a 16-channel 720p Mini 1U H.265 DVR featuring deep learning-based Motion Detection 2.0 for accurate human and vehicle classification, reducing false alarms. It supports multiple video inputs including HDTVI, AHD, CVI, CVBS, and up to 18 IP channels at 5MP resolution, with efficient H.265 Pro+ video compression for reduced storage needs. With up to 1080p Lite encoding at 15 fps, audio via coaxial cable, and a maximum 1200m transmission distance for 720p HDTVI signals, it offers versatile, high-quality surveillance recording and playback.

Features

•Smart Function
Deep learning-based motion detection 2.0
•Compression and Recording
H.265 Pro+ video compression improves encoding efficiency, and reduces data storage costs
Support 1080p Lite of all channels. When 1080p Lite is on, the image effect is similar with 1080p
•Storage and Playback
1x SATA interface (up to 10 TB capacity)
Smart search for efficient playback
•Network & Ethernet Access
Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management

Specifications

•Product Code: DS-7116HGHI-M1
•Description: Hikvision 7100 Series 16-ch 720p Mini DVR
•Deep learning based human and vehicle targets classification of Motion Detection 2.0
•H.265 Pro+/H.265 Pro/H.265 video compression
•HDTVI/AHD/CVI/CVBS/IP video input
•Max. 1200 m for 720p HDTVI signal
•Encoding ability up to 1080p lite @ 15 fps
•Audio via coaxial cable
•Up to 18-ch IP camera input (up to 5 MP)
