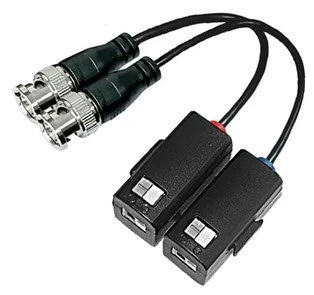

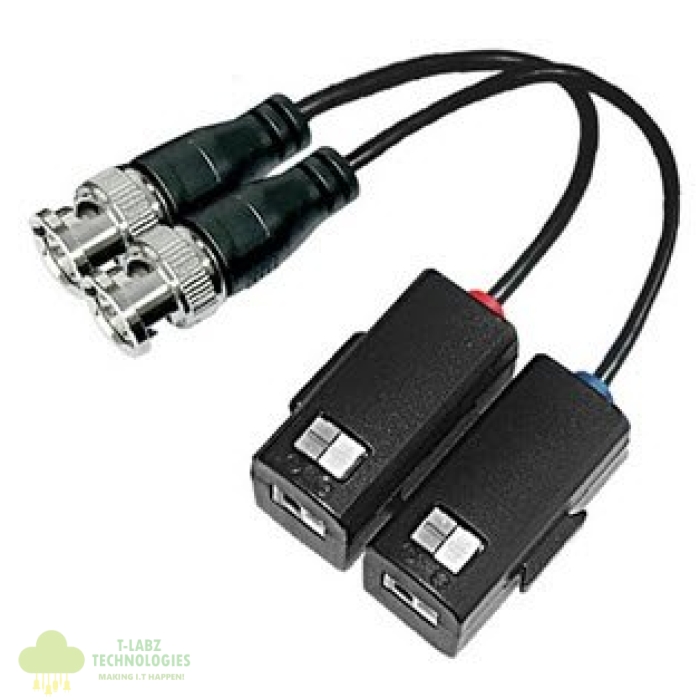

The FS-HDP4101P video balun is a passive (non-amplified) device that allows the transmission of real-time CCTV HD video signal via cost-effective Unshielded Twisted Paired (UTP) cable. The FS-HDP4101P is compatible with all HD-TVI, HD-CVI, AHD and CVBS analog cameras.

Product Overview

The FS-HDP4101P Single Channel HD Passive Video Balun provides reliable, real-time video transmission over UTP Cat5e/6 cable without the need for power. Compatible with HD-TVI, CVI, AHD, and CVBS analog cameras, it features built-in transient voltage suppression, wave filter, and lightning protection (Grade III) for enhanced surge and interference resistance. Its compact ABS housing design includes a male BNC connector with mini-coax pigtail, offering exceptional 60 dB crosstalk and noise immunity for clear, stable video signals

Specifications
•Product Code: FS-HDP4101P
•Description: Single Channel HD Passive Video Balun
•Applied Devices: CCTV cameras, monitors, DVR, switchers, IP encoders, and other CCTV equipment
•Video Format: HD-TVI/CVI/AHD/CVBS
•Operating Frequency: DC to 71MHz
•Common-mode/Differential-mode rejection: 15KHz to 71MHz 60 dB typ.
Impedance
•Coax: Male BNC 75Ω unbalanced
•UTP, push-pin terminal block 100Ω balanced
•Attenuation: 1.5 dB typ. Max
•Network Wiring: One Unshielded Twisted Pair (for each video signal) 24-16 AWG (0.5-1.31mm)
•Category Type: UTP cat 5e/6
•Impedance: 100 ± 20 ohms
•DC Loop Resistance: 52 ohms per 1,000ft (18 ohms per 100m)
•Differential Capacitance: 19 pF/ft max (62 pF/m max)
•Power: No external power required
•Video input/output: Male BNC connector
•Video input/output: Tool-less push-pin terminal block
•Surge Protection: renewable solid state surge protection
•Video Input: 2KV(common mode), 10/700us IEC61000-4-5/1955(GB/T 1726, 5-1999)
•Video Output: 2KV(differential mode), 10/700us IEC61000-4-5/1955(GB/T 1726, 5-1999)
•Housing: ABS engineering plastic
•Body Color: Black
•Dimensions(L*W*H): 38.4*18.6*19.5mm (BNC connector & cable excluded)
•Net Weight: 22g
•Operating Temperature: -20º ~ 70º C
•Relative Humidity: 0~95% (non-condensing)
•Storage Temperature: -40º ~ 150º C
